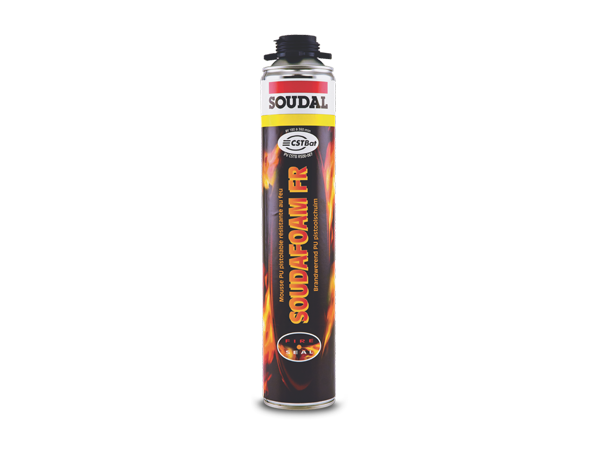

NOVIS Soudafoam FR
Product description
Soudafoam FR is a single-component, self-expanding, ready to use polyurethane foam which has a fire rating of up to 120 minutes in certain configurations according EN 1366-4.
Properties
Fire resistant up to 4 hours.
Sealant for preventing the passage of smoke and gas.
Good adhesion on all surfaces ( except PE, PP and PTFE).
High insulation value, thermal and acoustic Very good bonding properties.
Excellent stability (no shrinkage or post-expansion)
Packaging
Colour: light red
Packaging: 750 ml aerosol (net)
Shelf life
12 months unoppened und stored in dry and cool conditions
Applications
Installation of fireproof doors and windows. Fire and smoke retardant sealant between
walls, floors and ceilings.
Sealing of all openings in roof constructions.
Apply of a sound absorbing layer.
| Technical data | ||
| Basis | Polyurethane | |
| Consistancy | Stable foam, thixotopic | |
| Curing system | Moisture curing | |
| Skin formation | 8 min | |
| Density | Ca. 25 kg/m³ | |
| Temperature resistance | -40°C till +90°C (cured) | |
| Curing time | 2 hours for a 30mm bead | |
| Drying time (20°C and 60% R.H.) | Dust-proof after 20 -25 min | |
| Box Yield ( TM 1003-2010 ) | 750ml yields 30 l ( FEICA TM 1003-2010 ) | |
| Shrinkage | <5%( FEICA TM 1004-2010) | |
| Post-expansion | <1% (FEICA TM 1004-2010) | |
| Cellular Structure | Ca. 70 to 80% closed cells | |
| Resistance to fire (EN 1366) | 110 min. |
Soudal NV uses test methods approved by FEICA designed to deliver transparent and reproducible test results, ensuring customers have an accurate representation of product performance. FEICA OCF test methods are available at: http://www.feica.com/our-industry/pu-foam-technology-ocf . FEICA is a multinational association representing the European adhesive and sealant industry, including one-component foam manufacturers. Further information at: www.feica.eu
Standards
Warrington N° 9297D Warrington N° 13429D ITB NP-2049.2/2009 ITB NP-0249.1/2009
