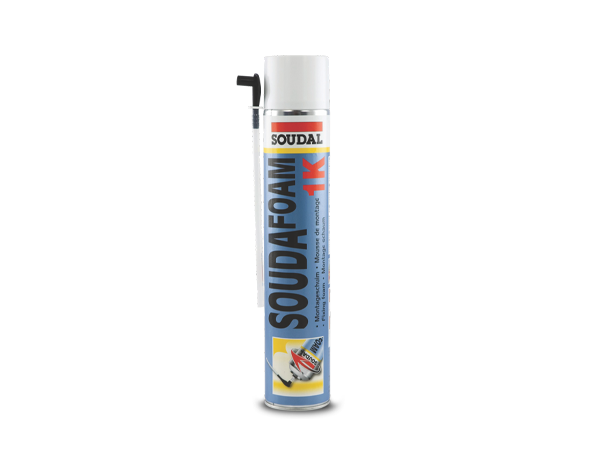

NOVIS SOUDAFOAM 1K
Product:
Soudafoam 1K with is a one-component, self-expanding, ready to use polyurethane foam with CFC-free propellants, which are completely harmless to the ozone layer.
Properties:
- Excellent adhesion on most substrates (except Teflon, PE and PP)
- High thermal and acoustical insulation
- Very good filling capacities
- Excellent mounting capacities
- Excellent stability (no shrink or post expansion)
Packaging:
Aerosol can 750 mL, 500 mL
Shelf life and storage:
- 12 months in unopened packaging in a cool and dry storage place at temperatures between +5°C and +25°.
- Always store can with the valve pointed upwards
Application:
- Installation of window- and doorframes
- Filling of cavities
- Sealing of all openings in roof constructions
- Creation of a soundproof screen
- Mounting and sealing of window- and doorframes
- Connecting of insulation materials and roof constructions
- Application of a soundproofing layer on motors
- Improving thermal insulation in cooling systems
| Technical data: | ||
| Base | Polyurethane | |
| Consistency | Stable foam | |
| Curing system | Moisture-cure, thixotropic | |
| Skin formation | Ca. 8 minutes (20°C/65% R.H.) | |
| Drying time | Dust free after 20-25 min. at 20°C | |
| Curing rate | 1,5 h for a 30 mm bead (20°C/65% R.H.) | |
| Yield | 1000 ml yields 35 L cured foam | |
| Shrink | None | |
| Post expansion | None | |
| Cellular structure | Ca 70-80% closed cells | |
| Specific gravity | Ca 25 g/m³ (extruded, fully cured) | |
| Temperature resistance | -40°C until +90°C when cured | |
| Colour | champagne | |
| Fire Class (DIN 4102 part2) | B3 | |
| Insulation Factor | 33 mW/mK | |
| Shear Strength (DIN53427) | 17 N/cm² | |
| Pressure Strength (DIN53421) | 3 N/cm² | |
| Bowing Strength (DIN53423) | 7 N/cm² | |
| Water Absorption (DIN53429) | 1% Vol. | |
| Acoustic Rating | RST,W= 58dB | |
