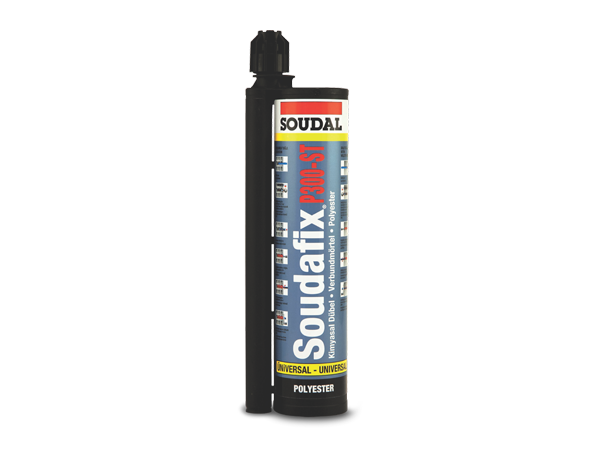

NOVIS SOUDAFIX P300-ST
Product:
SOUDAFIX P300-ST is a two-component anchoring resin for the pressure-free securing of anchoring rods, studs, reinforcing bars, threaded collars, profiles etc in various solid and hollow materials, such as uncracked concrete, light concrete, solid brick, hollow brick, porous concrete, natural stone, plasterboard walls, etc…
Properties:
- Easy to use and to apply
- Can be applied with standard caulking gun
- Fast cure
- High bending and pressure strength
- Wide application area
- Overhead application
- Cartridge re-usable by simply exchanging static mixer
- Ideal for anchoring in hollow brick in combination with sleeves
- Watertight and impermeable fixing
Packaging:
Colour: dark grey after mixing
Cartridge: 300 ml for use with standard caulking gun, 345 ml and 410 ml for use with special gun
Shelf life:
12 months in original packaging. Store at cool and dry place at temperatures between +5°C en +25°C.
Application area:
Securing of standard fixings in solid and hollow building materials. Pressure free anchoring even close to edges. Can be used as repair mortar.
Technical Data:
Base | Polyester | ||||||||||||
Consistency | Stable paste | ||||||||||||
Curing system | Chemical reaction | ||||||||||||
Full Curing Time (20°C/65% R.H.) | Temp. substrate | Working time | Dry substrate | Moist substrate | |||||||||
5°C | 25 min | 120 min | 240 min | ||||||||||
10°C | 15 min | 80 min | 160 min | ||||||||||
20°C | 6 min | 45 min | 90 min | ||||||||||
30°C | 4 min | 25 min | 50 min | ||||||||||
35°C | 2 min | 20 min | 40 min | ||||||||||
Specific Gravity | 1,67 g/cm³ | ||||||||||||
Temperature Resistance | -40 °C to + 80°C | ||||||||||||
Dynamic elasticity modulus | 3300 N/mm² | ||||||||||||
Maximum bending tensile strength | 56 N/mm² | ||||||||||||
Maximum compression strength | 108 N/mm² |
