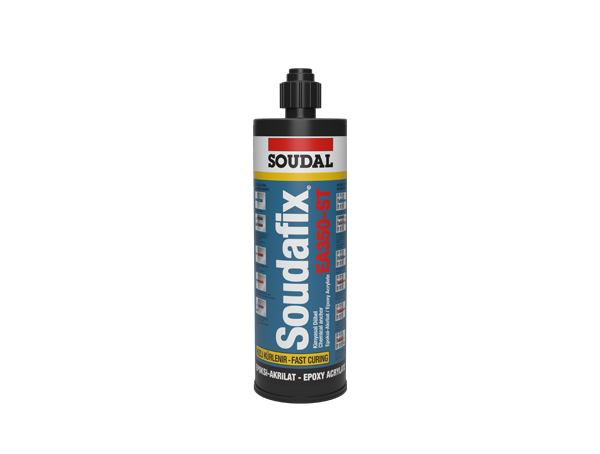

NOVIS SOUDAFIX EA350-ST
Product:
SOUDAFIX EA350-ST is a two-component anchoring resin for the pressure-free securing of anchoring rods, studs, reinforcing bars, threaded collars, profiles etc in various solid and hollow materials, such as uncracked concrete, light concrete, solid brick, hollow brick, porous concrete, natural stone, plasterboard walls, etc…
Properties:
- Easy to use and to apply
- Fast cure
- High bending and pressure strength
- Wide application area
- Overhead application
- Cartridge re-usable by simply exchanging static mixer
- Ideal for anchoring in hollow brick in combination with sleeves
- Reduced chemical resistance
Packaging:
Colour: dark grey after mixing
Cartridge: 410 ml for use with special gun
Shelf life:
12 months in original packaging. Store at cool and dry place at temperatures between +5°C en +25°C.
Application:
Securing of standard fixings in solid and hollow building materials. Pressure free anchoring even close to edges. Can be used as repair mortar.
Technical Data:
Base | Epoxyacrylate | |||
Consistency | Stable paste | |||
Curing system | Chemical reaction | |||
Full Curing Time (20°C/65% R.H.) | Temp. substrate | Working time | Dry substrate | Moist substrate |
5°C | 25 min | 120 min | 240 min | |
10°C | 15 min | 80 min | 160 min | |
20°C | 6 min | 45 min | 90 min | |
30°C | 4 min | 25 min | 50 min | |
35°C | 2 min | 20 min | 40 min | |
Specific Gravity | 1,66 g/cm³ | |||
Temperature Resistance | -40 °C to + 80°C | |||
Dynamic elasticity modulus | 3300 N/mm² | |||
Maximum bending tensile strength | 56 N/mm² | |||
Maximum compression strength | 108 N/mm² |
